rJava, rCharts and R code to display GC data

These are the steps I follow to display GC activity data using a nvd3 discrete bar chart.

Call Java class using rJava

  gctypes <- .jcall(realtimegcdataobserver ,"Ljava/util/List;","getGCTypes")

Create an empty data frame to hold the data

I get the type of the GC algorithm, GC count and time from JMX. I have yet to explore the last two values.

gcdata <- function(){
  df <- data.frame(

Iterate over the list of beans

Call appropriate methods and fill up the empty data frame.
I massage the data using the last two lines but don’t know any elegant way to accomplish this.

  emptygcdata <- gcdata()
  gctypedetails <- sapply( gctypes, function(item) rbind(emptygcdata, as.data.frame(c(GCType=item$getName(),Count=item$getL(),Time=item$getM()))))

  gctypedetails <- data.frame(gctypedetails)
  gctypedetails <- data.frame(matrix(unlist(gctypedetails)))

1 PS Scavenge
2 16
3 22
4 PS MarkSweep
5 0
6 0

emptygcdata <- gcdata()
  before <- 0
  after <- 2
    if (after >= nrow(gctypedetails))
    emptygcdata <- rbind(emptygcdata, data.frame(GCType =gctypedetails[before + 1,1], Count =gctypedetails[before + 2,1], Time=gctypedetails[before + 3,1]))
    before <- after + 1;
    after <- after + 2;

 GCType          Count  Time
1  PS Scavenge      16  22
2  PS MarkSweep     0  0

nvd3 using rCharts

  p2 = nPlot(x = "Time", y = "Count", data = emptygcdata, type = "discreteBarChart")
    color = "#! function(d){
      var ourColorScale = d3.scale.ordinal().domain(['PS MarkSweep','PS Scavenge']).range(['green','purple']);
      return ourColorScale(d.GCType);

Display JVM heap details using rJava and R

I finished the first full flow that pulls data from the JVM using JMX and dynamically updates a graph in a browser. I use rJava as the layer between R and Java. I code many lines of java, of course, using jdk 8.

realtimeyoungdata <- function(){
  realtimeyoungdataobserver <- .jnew("com/rxjava/jmx/YoungGenPeriodicObserver")
  occupancy <- .jcall(realtimeyoungdataobserver ,"Lcom/rxjava/jmx/YoungGenOccupancy;","getOccupancy")
  used <- occupancy$getUsed()
  max <- occupancy$getMax()
  print(paste("User[", used,"] Max [", max,"]"))
  result <- c(used, max)

Compile rJava from source

I am trying to compile rJava from source on OSX 10.7.5 using


The motive is this. I am using code compiled with jdk1.8.0_05 and call it using rJava. When I do this there is a mismatch between the class file version of code compiled with jdk1.8.0_05 and the class files rJava recognizes.

llvm-gcc-4.2 -arch x86_64 -std=gnu99 -c -o rjava.o rjava.c -g -Iinclude -DRIF_HAS_CSTACK
-DRIF_HAS_RSIGHAND -mtune=core2 -g -O2 –
I/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/../include –
I/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/../include/darwin –
fno-common –
I/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/../include –
llvm-gcc-4.2 -arch x86_64 -std=gnu99 -o libjri.jnilib Rengine.o jri.o Rcallbacks.o Rinit.o
globals.o rjava.o -dynamiclib -framework JavaVM -F/Library/Frameworks/R.framework/.. –
framework R -llzma -licucore -lm -liconv
ld: library not found for -llzma
collect2: ld returned 1 exit status
make[2]: *** [libjri.jnilib] Error 1
make[1]: *** [src/JRI.jar] Error 2
make: *** [jri] Error 2
ERROR: compilation failed for package ‘rJava’

I have installed xz using homebrew but that didn’t help.

rJava binaries are installed and working properly. It is the source compilation that causes this.

I have executed R CMD javareconf.

Java interpreter : /usr/bin/java
Java version : 1.8.0_05
Java home path : /Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre
Java compiler : /usr/bin/javac
Java headers gen.: /usr/bin/javah
Java archive tool: /usr/bin/jar
Non-system Java on OS X

trying to compile and link a JNI progam
detected JNI cpp flags : -I$(JAVA_HOME)/../include -I$(JAVA_HOME)/../include/darwin
detected JNI linker flags : -L$(JAVA_HOME)/lib/server -ljvm
llvm-gcc-4.2 -arch x86_64 -std=gnu99 -I/Library/Frameworks/R.framework/Resources/include –
DNDEBUG -I/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/../include –
I/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/../include/darwin –
I/usr/local/include -fPIC -mtune=core2 -g -O2 -c conftest.c -o conftest.o

llvm-gcc-4.2 -arch x86_64 -std=gnu99 -dynamiclib -Wl,-headerpad_max_install_names -undefined dynamic_lookup -single_module -multiply_defined suppress -L/usr/local/lib -L/usr/local/lib -o conftest.so conftest.o -L/Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre/lib/server -ljvm -F/Library/Frameworks/R.framework/.. -framework R -Wl,-framework -Wl,CoreFoundation

JAVA_HOME : /Library/Java/JavaVirtualMachines/jdk1.8.0_05.jdk/Contents/Home/jre
Java library path: $(JAVA_HOME)/lib/server
JNI cpp flags : -I$(JAVA_HOME)/../include -I$(JAVA_HOME)/../include/darwin

JNI linker flags : -L$(JAVA_HOME)/lib/server -ljvm
Updating Java configuration in /Library/Frameworks/R.framework/Resources

None of the solutions posted on the internet helped me until I manually downloaded xz-5.0.5.tar.gz into /usr/local and executed

    make install.

rJava compiled successfully after this.

R Shiny

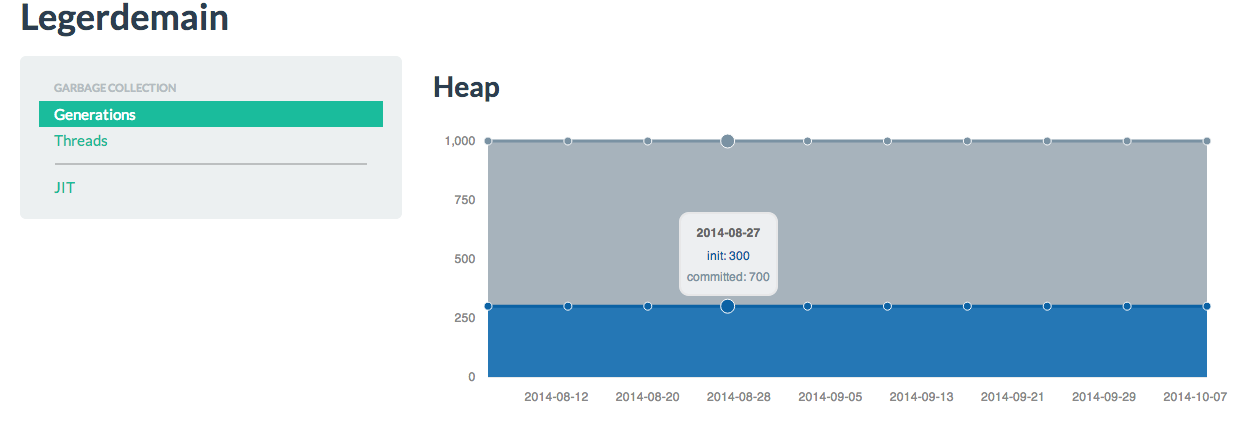

I have recently started to code a web dashboard to show information like heap usage in HotSpot. So initially I setup a Shiny server. The part that connects to HotSpot is not ready but this is my first Shiny UI. This is a Twitter BootStrap UI.

Part of the shiny server code is this. Now the data is generated by R code and later the data will be extracted from the JVM using JMX and other serviceability API’s.

output$metaspace <- renderChart({
  metacapacity <- data.frame(lapply(as.Date('2014-08-06') + 0:0, seq, as.Date('2014/10/08'), '1 weeks'));
  metacapacity['init'] <- 300
  metacapacity['committed'] <- 700
  colnames(metacapacity) <- c("date","init","committed")
  metacapacity  <- transform(metacapacity,date=as.character(date))
  ms <- mPlot(x = "date", y = c("init", "committed"), type = "Area", data = metacapacity)
  ms$addParams(height = 300, dom = 'metaspace')
